API Xq89/3yc hydraulic power tongs/drill pipe power tongs/hydraulic power tongs/casing power tongs

Quick DetailsCondition:NewWarranty:1 YEARApplicable Industries:Energy & MiningVideo outgoing-inspectin:ProvidedMachinery Test Report:ProvidedMarketing Type:New Product 2020Place of Origin:Shandong, ChinaType:Jaw PlateMachine Type:Drilling ToolCertification:APIMaterial:Carbon SteelProcessing Type:CastingUse:Oil Drilling Rigwa

Featured Products

Quick Details
Condition:New
Warranty:1 YEAR
Applicable Industries:Energy & Mining
Video outgoing-inspectin:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Place of Origin:Shandong, China
Type:Jaw Plate
Machine Type:Drilling Tool
Certification:API
Material:Carbon Steel
Processing Type:Casting
Use:Oil Drilling Rig
warranty:1 year
Packaging & Delivery
Selling Units:Single item
Single package size: 65X45X55 cm
Single gross weight:55.000 kg
Package Type:Standard Export Packing.
Lead Time :
Quantity(Units)1 - 15>15
Est. Time(days)20To be negotiated



Product Description

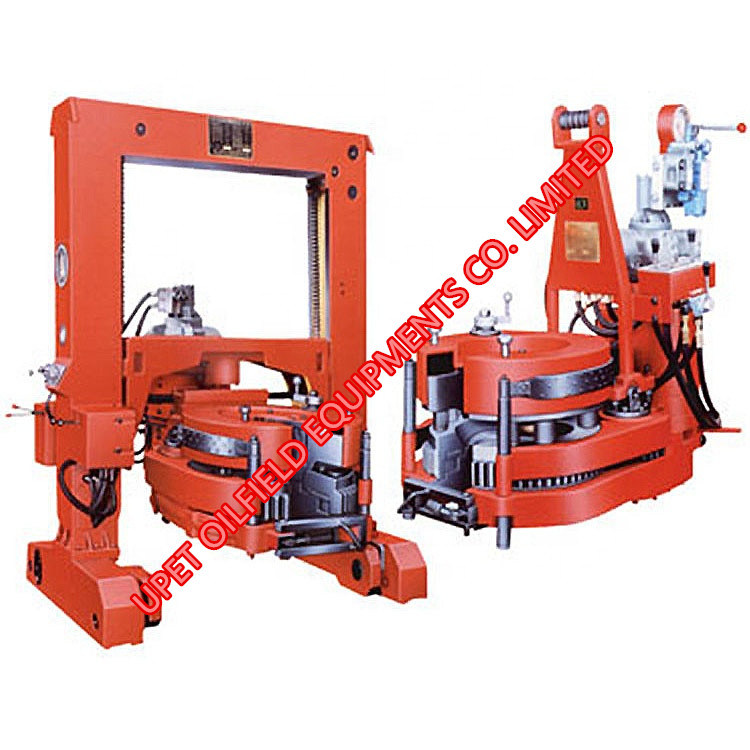

the Hydraulic Power Tong is also called the Drill Pipe Power Tong, Our ZQ series drill pipe power tong is an ideal well head tool for oil drilling, widely applied for making-up and breaking-out in offshore and onshore drilling operations and workover operations. Open-throat design of the ZQ series allows the tongs to escape from drilling pipe freely with high mobility. The tong is a  combination of spinning tong and torque tong. It substitutes cathead, manual tong and rotary rope in making-up and breaking-out. The tongs are designed and manufactured according to API Spec 7K Specification for Drilling Equipment

Technical Datas:
ModelZQ203-125ZQ203-100ZQ203-100AZQ203-100BZQ162-50ZQ127-25
Size
rang
mm127-203121-203121-203121-20385-16265-127
in31/2
coupling
-8body
31/2
coupling
-8body
31/2
coupling
-8body
31/2
coupling
-8body
23/8
coupling
-5body
23/8
coupling-31/2body
Max.torquekN.M1251001001005025
ft.lbf922007375073750737503688018440
Speed of tong Hi.rpm404040406065
Speed of tong To.rpm2.72.72.72.74.110.5
Hydraulic system pressure ratiginMpa2016.616.616.61612
Psi290024002400240023201740
Hydraulic system pressure ratiginL/min114114114114120180
gpm303030303248
Stoke of shifting cylindermm150015001500/10001000
in595959/39.439.4
Moving distance of tongmm///0-3000//
in0-59
Lifting diatance of tongmm//0-4850-1800//
in0-190-31.5
Overall dimensionsmm1720
*1050
*1750
1700
*1000
*1400
1700*
1000
*1400
1750*
1650
*2050
1570*
800
*1190
1110*
790
*820
in68*
41*69
67*
39*55
67*
39*55
69*
65*81
62*
31*47
44*
31*32
WeightKg26002400250032501500620
Detailed Photos
API Xq89/3yc Hydraulic Power Clamp/Drill Pipe Power Tong/Hydraulic Power Tong/Casing Power Tong
API Xq89/3yc Hydraulic Power Clamp/Drill Pipe Power Tong/Hydraulic Power Tong/Casing Power Tong
API Xq89/3yc Hydraulic Power Clamp/Drill Pipe Power Tong/Hydraulic Power Tong/Casing Power Tong
API Xq89/3yc Hydraulic Power Clamp/Drill Pipe Power Tong/Hydraulic Power Tong/Casing Power Tong
