Below are only some typical models.
For more information or a customed motor, Pls contact us.
Option for :
customized shaft, performance, voltage, mounting, lead wires..
Option for:
Electric Brake, Planetary Gearbox, Worm Gearbox, Optical Encoder Integrated
Size 80mm brushless dc motors
Rated Voltage : 24 Volt
Option for 12v 24v 36v 48v 60v
| Bearing | High quality ball bearing |
| Poles | 4- poles 8-poles |
| Protection class | IP40 IP55 option |
| Insulation class | class: F |

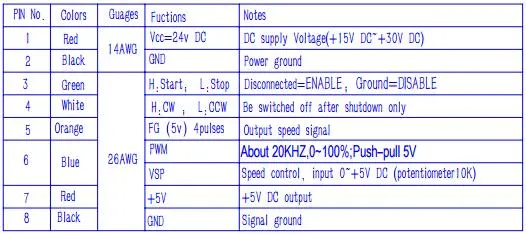

Electric Connections

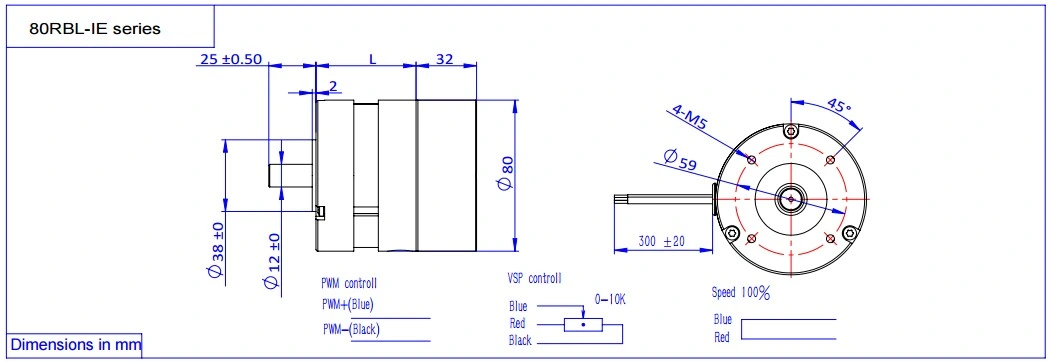

CONTROLLER INTEGRATED VERSION
Diagram

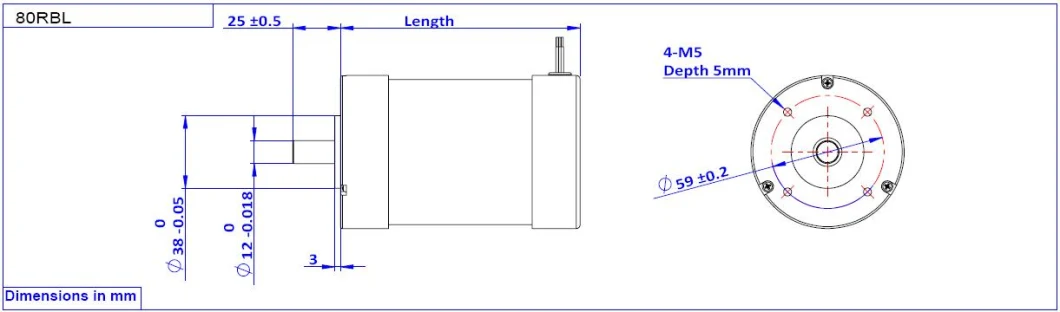

Drawing
PLANETARY GEARED VERSION
WORM GEARED VERSION
