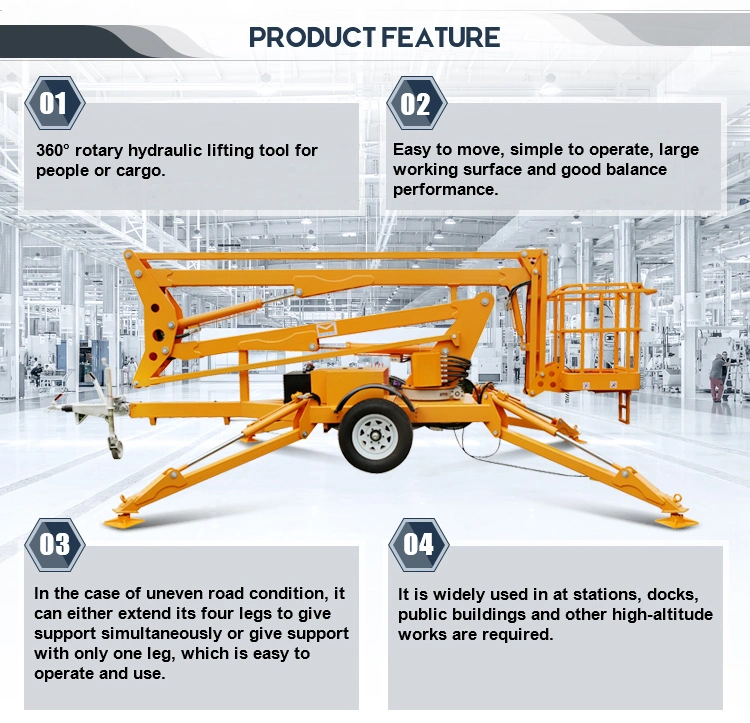

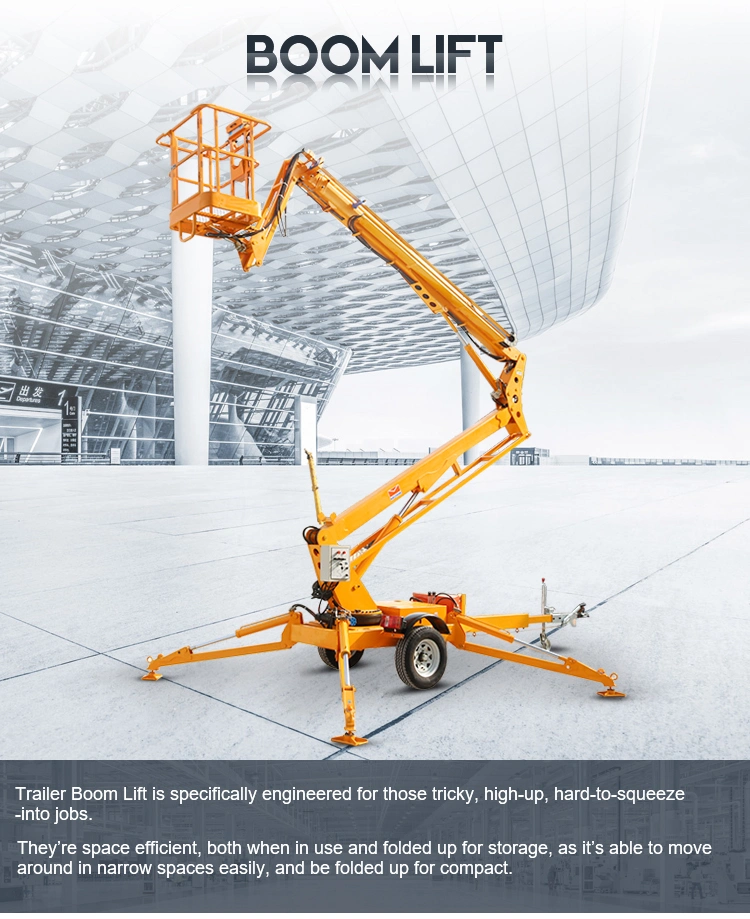

It can be towed everywhere by car, and the four automatic hydraulic legs provide high stability.
Widely used in roads, street light maintenance, shopping malls, and other working place.
Standard petrol engine power, battery and AC power are optional.
Advantages and safety
Guarantee the boom lift and worker safety during working.
2. hydraulic lock
Each outrigger is installed one hydraulic lock, prevent outrigger back, in case of the hydraulic oil pipe damaged. It will protect worker safety at top platform
During boom lift work, warning alarm will work to remind surround people mind safety
Turnable platform with big load capacity. And slewing bearing adopt fence-mounted.(could be rotated 360°)
Function:Guarantee the boom lift stability during rotation,waterproof and dust proof.IP65
We used is big, strong and durable turntable system .
There is a balancing valve on each hydraulic cylinder
Function: 1.If the hydraulic pipe rupture, balance valve will prevent oil over flow and prevent the lift platform down suddenly. 2.If meet emergency situation, we could down the platform by balance valve.
Boom lift with balance valve main parts imported from Italy
6.Hands prevent folder on the platform
The platform with protect bar to protect the hand from clamping, if the platform near the any obstacle.
fixed folding boom,prevent the machine from shaking during movement.(Lock only the first arm)
The function of the small wheel is to control the direction when the machine is moving manually.The little wheel will rise when the truck goes.
Double brake system
It is imported from Italy with two kinds brake system:
(1)Mechanical brake,One brake line connect to the truck, if the truck stop, boom lift will stop against inertia
(2)Electric brakes,Boom lift could be connect the truck brake light, if truck brake light working, the boom lift will be brake automatically.
The boom lift will be stopped in case of any emergency
11.Trailer has need special tow hook, connect with trucking well, and move or turning smoothly.
10m, 12m, 14m height towable boom lift load in one small container only.
16m,18m height towable boom lift load in one big container only.
|Platform height||8 m||10 m||12 m||14 m||16 m||18 m|
|Working height||10 m||12 m||14 m||16 m||18 m||20 m|
|Load capacity||200 kg||200 kg||200 kg||200 kg||200 kg||200 kg|
|Platform size||900*700 mm||900*700 mm||900*700 mm||900*700 mm||900*700 mm||900*700 mm|
|Weight||1600 kg||1600 kg||1800 kg||2500 kg||2800 kg||3800 kg|
|Working radius||4.5 m||4.5 m||7 m||7 m||8 m||8 m|
|Units for 40GP||3 units||3 units||3 units||3 units||2 units||1 units|
