7 ton diesel forklift standard configurations:
AUTOMATIC electric hydraulic TRANSMISSION with TCM technology;
Japanese Shimadzu brand hydraulic pump;
DUPLEX 3m lifting mast;
Fork Length: 1220mm;
Engine model:Chinese XICHAI/Japan Isuzu 6BG1 engine;
DOUBLE FRONT TYRE;
Pneumatic tyres;
DOUBLE AIR FILTER;
high POSITION exhaust;
heavy duty 7 ton diesel forklift picture
7 ton diesel forklift with japan isuzu engine
7 ton diesel forklift parameters:
Model | FD70 | |||
Features | Power type |
| Diesel | |
Rated Load | kg | 7000 | ||
Load Center | mm | 600 | ||
Lifting Height | mm | 3000 | ||
Free Lifting Height | mm | 220 | ||
Fork Size | L*W*T | mm | 1220×150×70 | |
Mast Tilt Radius | Front/Rear | . | 6/12 | |
Minimum Turning Radius | mm | 3370 | ||
Minimum Stacking Right Angle Channel Width | mm | 5620 | ||
Minimum Right Angle Channel Width | mm | 3040 | ||
Minimum Ground Clearance | mm | 200 | ||
Overhead Guard Height | mm | 2460 | ||
Front Overhang | mm | 625 | ||
Performance | Max. Travelling Speed | Full load | km/h | 26 |
Max. Lifting Speed | Full load | mm/s | 460 | |
Max. Traction | Full load | KW | 51.4 | |
Max. Climbing Ability | % | 20 | ||
Dimension | Overall Length | Without Fork | mm | 3550 |
Overall Width | mm | 2235 | ||
Max. Fork Lifting height (With Load Backrest) | mm | 4380 | ||
Mast Height | mm | 2500 | ||
Chassis | Tyre | Front |
| 8.25-15-14PR |
Rear |
| 8.25-15-14PR | ||
Wheel Base | mm | 2250 | ||
Wheel Tread | Front/Rear | mm | 1470/1700 | |
Curb Weight | Without Load | Kg | 9340 | |
Power | Battery | Voltage/Capacity | V/Ah | (12/90)x2 |
Engine | Model |
| CY6102BG6 | |
Rated Power | kw/r.p.m | 81/2500 | ||
Rated Torque | Nm/r.p.m | 353/1700 | ||
Bore*Stroke | mm | 102×118 | ||
Cylinder Amount |
| 6 | ||
Displacement | L | 5.785 | ||
Fuel Tank Volume | L | 120 | ||
Gears front/back |
| 2/2 | ||
Working Pressure | Mpa | 20 | ||
Company information:

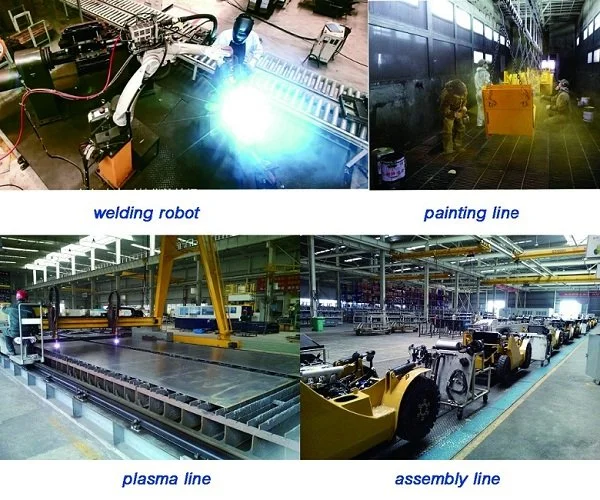

We are top 3 in Chinese forklift manufactures and top 20 in the world,over 500 employees,30,000 units forklift truck production capacity per year,5000 sets export volume,our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipment, eg: welding robot and others to realize over 95% automatic production line.
Our company regards "reasonable price , efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. If you have any demands in forklift,please inquiry Judy
1. Diesel Forklift Truck Range from 1 to 10tons; (FD30,FD35,FD40,FD45,FD50,FD60,FD70)
2. Electric Forklift Truck Range from 1.5 to 3.5tons; (FB15, FB20, FB25, FB30, FB35)
3. LPG & Gasoline Forklifts Range from 1.5 to 3.5tons; (FL15, FL20, FL25, FL30, FL35)
4. Warehouse Logistic Forklift 1 to 3tons Reach Truck / Pallet Truck / Stacker ; (YB16,YB20,DB16,DB20)
Afer-sale service:
We have a professional forklift after-sale service team. We can guarantee you the 24-hour calling rapid-reaction mechanism. Please contact us freely, if any questions.
Our forklifts are all well-designed and strictly tested. If any forklift maintenance problem you can not handle, we can also offer forklift training and maintenance services in our factory field or at your site.Your requirements will be handled promptly and appropriately.
Our SNSC forklift has officially build up the cooperation relationship with 22 partners and provided the best and fast forklift service for the customers all over the world. Besides,We have offices in Algeria, Brazil, Britain and South Africa.
Package:
Packing Details : 40HQ can hold 2 stes 7 ton diesel engine forklift
Delivery Details : 30 days
