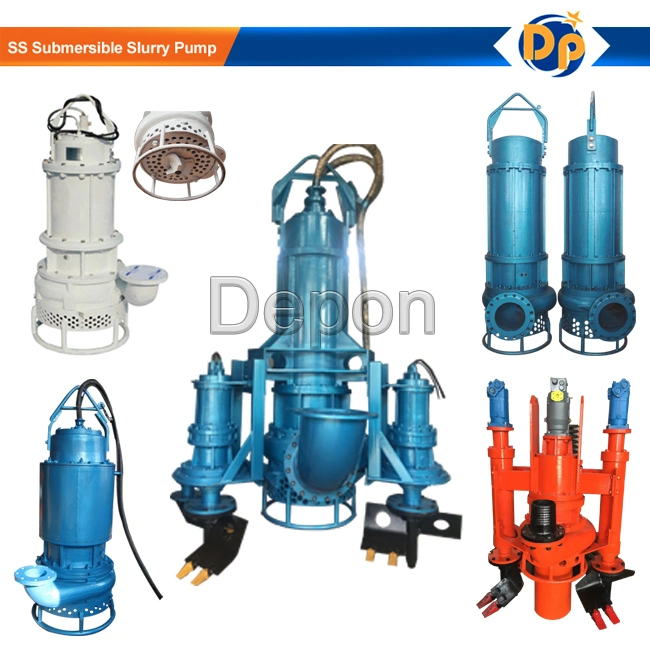

Hydraulic Power Submersible Slurry Sand Pump
General Information
The Depon SS Series Submersible Slurry Pumps are electro submersiblcentrifugal pumps designed for pumping abrasive and high density slurries in mining, heavy industry, civil construction and municipal applications.
Applications
Transfer of waste water, effluent and solids laden water for:
• Building Services
• Sumps and Basements
• Mining
• Civil Construction
• Industry
• Municipal
• Processing
• Water Treatment
Technical Data
| Flowrate | 6.5 - 670l/s |
| Max. Head | 64m |
| Max. Working Pressure | 640kPa |
| Max. Solid Size | 10 - 60mm |
| Discharge | 80 - 400mm |
| Motor Sizes | 7.5 - 315kW |
| Operating Speed | 980-1480RPM |

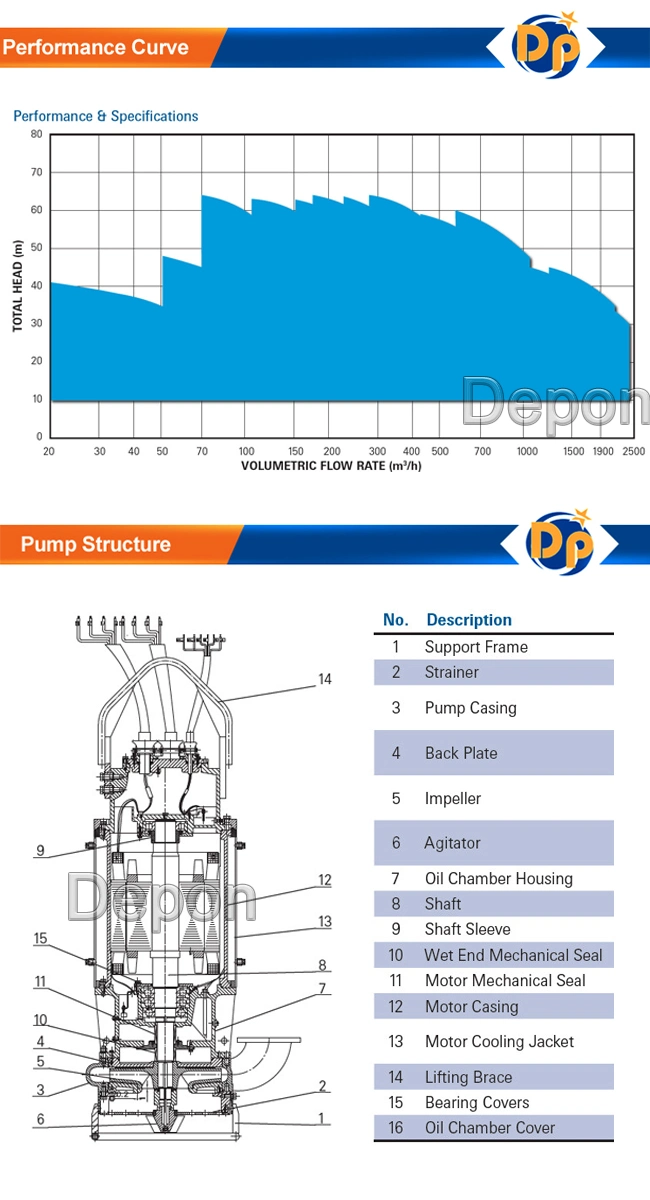

Materials
| NO. | Description | Standard Material | Material Options |
| 1 | Support Frame | Mild Steel | |
| 2 | Strainer | 420 Stainless Steel | |
| 3 | Pump Casing | Cr27 White Iron | SS316, A49,CD4MCu |
| 4 | Back Plate | Cr27 White Iron | SS316, A49,CD4MCu |
| 5 | Impeller | Cr27 White Iron | SS316, A49,CD4MCu |
| 6 | Agitator | Cr27 White Iron | SS316, A49,CD4MCu |
| 7 | Oil Chamber Housing | Cast Iron | |
| 8 | Shaft | 420 Stainless Steel | |
| 9 | Shaft Sleeve | 420 Stainless Steel | |
| 10 | Wet End Mechanical Seal | 304 Stainless Steel | |
| 11 | Motor Mechanical Seal | 304 Stainless Steel | |
| 12 | Motor Casing | Cast Iron | |
| 13 | Motor Cooling Jacket | Fabricated Mild Steel | |
| 14 | Lifting Brace | Mild Steel | |
| 15 | Bearing Covers | Cast Iron | |
| 16 | Oil Chamber Cover | Cast Iron |
Model Selection Table
| Model | Outlet Dia. (mm) | Capacity (m³/h) | Head (m) | Power (Kw) | Speed (r/min) | Max.Dia.of Solid (mm) | Pump Weight (kg) |
SS45-15-5.5 | 80 | 45 | 15 | 5.5 | 1460 | 13 | 100 |
| SS15-20-5.5 | 80 | 15 | 20 | 5.5 | 1460 | 13 | 100 |
| SS30-30-7.5 | 80 | 30 | 30 | 7.5 | 1460 | 13 | 114 |
| SS50-26-11 | 80 | 50 | 26 | 11 | 1460 | 13 | 165 |
| SS75-25-15 | 100 | 75 | 25 | 15 | 1460 | 13 | 220 |
| SS150-18-18.5 | 150 | 150 | 18 | 18.5 | 980 | 32 | 550 |
| SS200-12-22 | 150 | 200 | 15 | 22 | 980 | 45 | 580 |
| SS60-46-30 | 150 | 60 | 46 | 30 | 980 | 21 | 700 |
| SS150-30-30 | 150 | 150 | 30 | 30 | 980 | 21 | 550 |
| SS300-20-37 | 200 | 300 | 20 | 37 | 980 | 28 | 775 |
| SS200-30-45 | 150 | 200 | 30 | 45 | 980 | 36 | 1000 |
| SS500-15-45 | 250 | 500 | 15 | 45 | 980 | 46 | 1100 |
| SS250-35-55 | 150 | 250 | 35 | 55 | 980 | 36 | 1140 |
| SS600-15-55 | 250 | 600 | 15 | 55 | 980 | 46 | 1140 |
| SS350-35-75 | 200 | 350 | 35 | 75 | 980 | 28 | 1550 |
| SS500-20-75 | 200 | 500 | 20 | 75 | 980 | 25 | 1550 |
| SS200-60-90 | 150 | 200 | 60 | 90 | 980 | 14 | 1550 |
| SS400-40-90 | 200 | 400 | 40 | 90 | 980 | 28 | 1550 |
| SS600-30-110 | 200 | 600 | 30 | 110 | 980 | 28 | 1970 |
| SS1000-18-110 | 300 | 1000 | 18 | 110 | 980 | 50 | 1970 |
| SS500-45-132 | 200 | 500 | 45 | 132 | 980 | 28 | 2000 |
| SS1000-22-132 | 300 | 1000 | 22 | 132 | 980 | 50 | 2000 |
| SS650-52-160 | 200 | 650 | 52 | 160 | 980 | 28 | 2650 |
| SS780-50-185 | 300 | 780 | 50 | 185 | 980 | 38 | 3330 |
| SS800-55-220 | 300 | 800 | 55 | 220 | 980 | 38 | 3400 |
| SS1250-35-220 | 350 | 1250 | 35 | 220 | 980 | 45 | 3400 |
| SS1750-30-250 | 350 | 1750 | 30 | 250 | 980 | 55 | 3500 |
| SS2000-35-315 | 400 | 2000 | 35 | 315 | 980 | 60 | 3700 |
