Giant Manual Hydraulic Pallet Stacker With 400KG Lifting Capacity(PJ) Product DescriptionGiant Manual Stacker requires manually push & lift, stacker provides cost-effective handling for both vehicle loading and production areas. Easy maintenance and cost-effective.Product Feature: Simple and easy operation: Lifting

Featured Products




Manual Stacker Hand Pallet Lift Stacker Hydraulic Truck Removeble Platform Adjustable Fork (PJ)
Giant Manual Hydraulic Pallet Stacker With 400KG Lifting Capacity(PJ)



Product Description


Giant Manual Stacker requires manually push & lift, stacker provides cost-effective handling for both vehicle loading and production areas. Easy maintenance and cost-effective.

Product Feature:


  1. Simple and easy operation: Lifting movement via collapsible foot pedal. Sensitive lowering through relief valve. Drive by manpower.
  2. Multiple cargo lifting method to fit in the need for lifting different type of product
  3. Double Chain lifting, better stability
  4. High quality steel mast and strong steel construction ensures rigidity and durability
  5. Highly efficient pumps make the control easier to operate

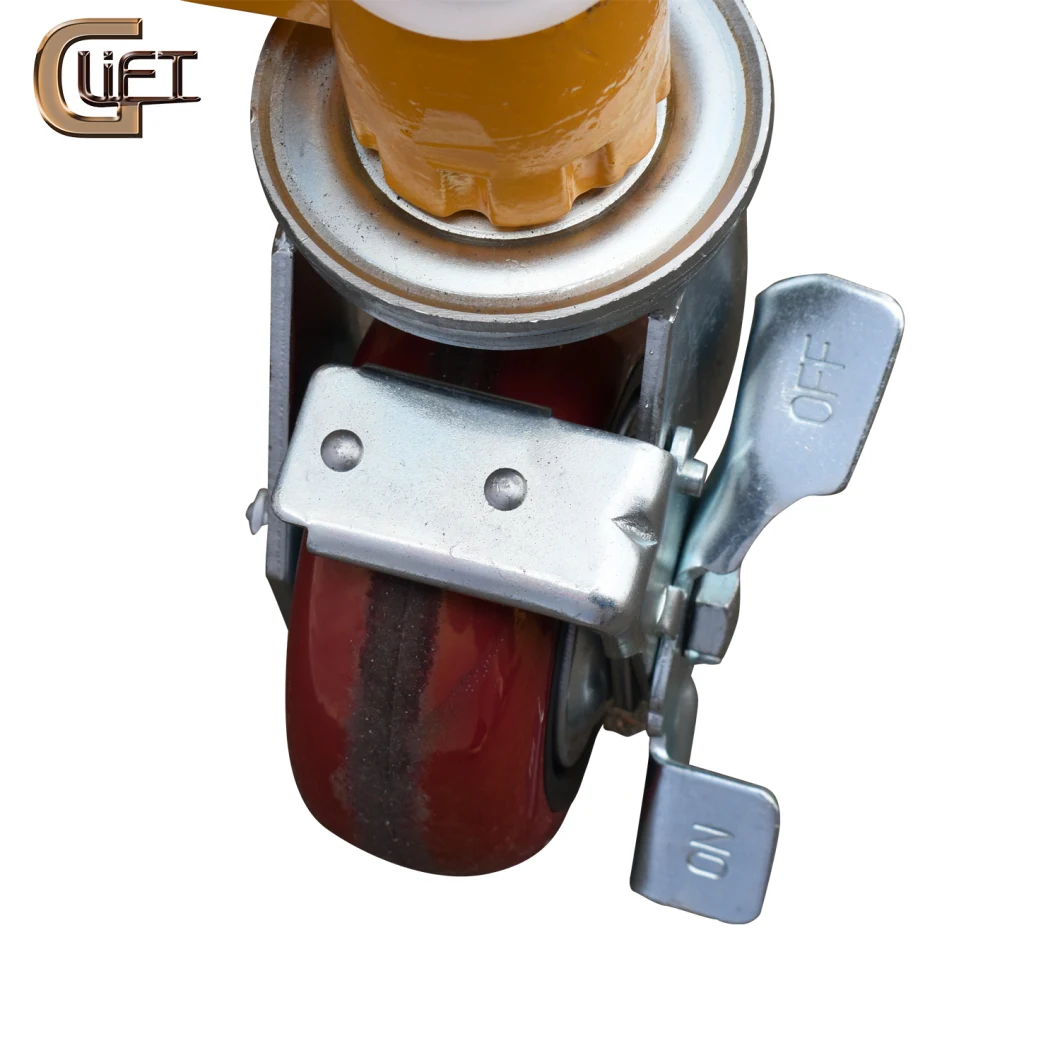

  6. With safety wheel guard and brake system to ensure safety during operation
  7. Overload protection via pressure valve.
  8. Long service lift: Robust construction. Hard chromium plated frame. Hardened chromium plated ram
  9. Effortless movement: Ball bearing rollers or Polyurethane rollers.
  10. Default No-marking castor
  11. Conforms to EN1757

Manual Stacker Hand Pallet Lift Stacker Hydraulic Truck Removeble Platform Adjustable Fork (PJ)

Product Parameters

Manual Stacker Hand Pallet Lift Stacker Hydraulic Truck Removeble Platform Adjustable Fork (PJ)
Manual Stacker Hand Pallet Lift Stacker Hydraulic Truck Removeble Platform Adjustable Fork (PJ)



PJ
Model(Plarform) PS4085PS4120PS4150
Model(Fixed Fork) PF4085PF4120PF4150
Model(Adjustable Fork) PJ4085PJ4120PJ4150
Capacitykg400400400
Max.Fork/Platform Heightmm85012001500
Min.Fork Height(PJ/PF)mm858585
Min.Platform Height(PS)mm200200200
Fork/Platform Heightmm650650650
Fixed/Platform Fork Width(PF/PS)mm550550550
Adjustable Fork Width(PJ)mm235-500235-500235-500
Pump Strokes to Max.Height(PS)mm304558
Pump Strokes to Max.Height(PF/PJ)mm355063
Overall HeightPF/PJmm106014101710
PSmm97013101610
Overall Width mm590590590
Overall LengthPF/PJmm104010401040
PSmm104010401040
Net WeightPSkg757883
PFkg707682
PJkg758185
Option Platform(PJ/PF)mm660x580660x580660x580

Detailed Photos

Manual Stacker Hand Pallet Lift Stacker Hydraulic Truck Removeble Platform Adjustable Fork (PJ)
Manual Stacker Hand Pallet Lift Stacker Hydraulic Truck Removeble Platform Adjustable Fork (PJ)
Manual Stacker Hand Pallet Lift Stacker Hydraulic Truck Removeble Platform Adjustable Fork (PJ)



Similar Products


Manual Stacker Hand Pallet Lift Stacker Hydraulic Truck Removeble Platform Adjustable Fork (PJ)

QUALITY CONTROL PROCESS


Manual Stacker Hand Pallet Lift Stacker Hydraulic Truck Removeble Platform Adjustable Fork (PJ)

FAQ



Q1: Are you a factory or a trading company?
A1:We are a combination of both, we focused on manufacturing material handling product such as lift tables, manual & electric pallet trucks and lifting platforms over 35 years, we also exporting manual & electric chain hoist, lever hoisting, lifting clamp and steel jack. We are your ideal choice for one stop purchase with our compete line of industrial lifting/moving equipment
Q2: Can Giant lift provide customized products? OEM products or ODM products?
A2: Yes, Giant lift can provide customized products according to your requirement. Both OEM and ODM are acceptable.

Q3: Can we print the LOGO on products?
A3: Yes, the OEM is available with the permission of our customers.

Q4: How do you control your quality?
A4: 1. We only select high-quality steel material from famous steel group
2. Standardized production process with traceable ID Card, every part can be tracked to the original records.
3. 100% finished product testing before shipping.
4. We accept third party product inspections.
5. ISO9001 Quality management system certificated factory
6. Supervised container loading process, ensures the last step security

Q5: How long is the warranty on your products?
A5: We provide 12 months warranty for all of our product, excluding wear parts such as wheels, tire or hydraulic oil
Q6: What's the lead time for production?
A6: Usually around 10-15 days after payment received, around 30 days during new year's or national holidays.

Q7: What Payment terms do you accept?
A7: T/T or L/C, if you want any other method please contact sales

Q8: What are your advantages compared to the others?
A8:
  1. Unique products, with customized service.
  2. Timely production and delivery, time is money.
  3. Market protection service, long term business strategy.
