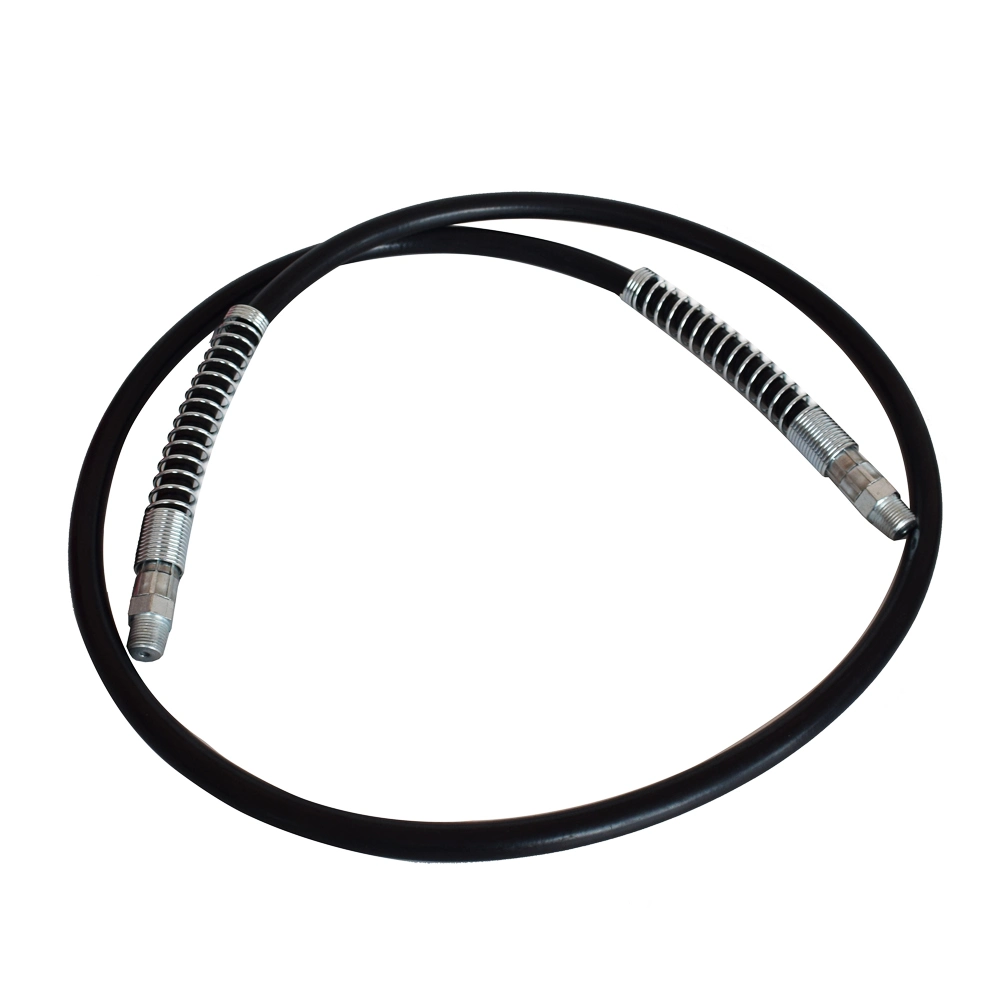

10000PSI Porta Power Control Lift 6ft HoseAir Hydraulic Foot Pump
ITEM NO: AHP1101-1
STORAGE INSTRUCTIONS
1. Release air pressure
2. Clean well the pump outwardly
3. store up in a clean and dry room
4. Cover the pump to protect it away the dust
Competitive Advantage
1.High quality with reasonble price
2. Low MOQ
3. Excellent service: 24 hours online reply
4. After-sale service: Warranty is 1 year, repair and service forever.
5. OEM service: customer's LOGO engraving, customized design and packaging
6.Reorder discount: 5%-10% depend on the order qty
ITEM NO: AHP1101-1
1. Rated Pressure: 10,000psi (700Bar)
2. Air Pressure: 108-120 psi (7.5-8.5Bar)
3. Oil Flow At 100 Psi Air Pressure: 30cu.in/Min.at 0 psi(500c.c/ Min.at 0bar/ 8cu.in/Min.at 10,000 psi(130c.c/ Min.at 700 bar)
4. Usable Oil Capacity: 690L (42 cu.in)
5. Air Consumprion: 10 SCFM (0.28 cu.m/min)
6. Air Inlet Thread: 1/4"NPT
7. Air Hose I.D. Size: 1/4", Length: 70"
| ITEM NO | AHP1101-1 |
| DIMENSION | 370*186*168MM |
| G/N WEIGHT | 8.5/8.0KGS |
| RATED PRESSURE | 10,000PSI(700Bar) |
| CAPACITY | 0.85MPA |
| AIR PRESSURE | 108-120 PSI (7.5-8.5Bar) |
| OIL FLOW AT 100PSI AIR PRESSURE | 30cu.in/Min.at 0 psi(500c.c/ Min.at 0 bar)/8cu.in/Min.at 10,000 psi(130c.c/ Min.at 700 bar) |
| USABLE OIL CAPACITY | 690L (42 cu.in) |
| AIR CONSUMPRION | 10 SCFM (0.28 cu.m/min) |
| AIR INLET THREAD | 1/4"NPT |
| AIR HOSE I.D SIZE | 1/4", Length: 70" |
| HYD.OIL (ML) | 690ml |
STORAGE INSTRUCTIONS
1. Release air pressure
2. Clean well the pump outwardly
3. store up in a clean and dry room
4. Cover the pump to protect it away the dust
Competitive Advantage
1.High quality with reasonble price
2. Low MOQ
3. Excellent service: 24 hours online reply
4. After-sale service: Warranty is 1 year, repair and service forever.
5. OEM service: customer's LOGO engraving, customized design and packaging
6.Reorder discount: 5%-10% depend on the order qty
