Smart Control Variable Frequency Electric Motor Integrated with controller for Pumps Compressors Blowers
---------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------
Applications: Widely used in fans, pumps, compressors, CNC machine tools and other industries. It's in line with the current trend of intelligent development of new products.
General Description
General Description
- Frame sizes: 80 to 132
- Rated output: 0.18 to 7.5kW
- Voltage: 380V
- Frequency range: 25Hz or 100 Hz
- Number of poles: 2,4
- Insulation class: F
- Degree of protection: IP55
- Efficiency levels: IE2/ IE3
High Lights:
*Highly -integrated
*Space-Saving
*Independent brand
*Stability
*Reliability
*Perfect Service
*Wide Application
*Attractive Profile
*Compact structure
*Simple operation
Features:
*Highly -integrated
*Space-Saving
*Independent brand
*Stability
*Reliability
*Perfect Service
*Wide Application
*Attractive Profile
*Compact structure
*Simple operation
Features:
These series motor is different from general frequency variable motor. The motor and inverter is highly integrated as an organic whole, with small size, light weight, wide range of frequency conversion, stable performance and other advantages.
The Implication of the Symbol:
| Item | Description | |||
| Basic Control Function | Control | Open-loop vector control(No PG), V/F control | ||
| Max frequency | Vector control:0~300Hz V/F control: 0~3200Hz | |||
| Carrier Frequency | 0.5kHz~16kHz Self-adjust frequency basing on the load characteristic | |||
| Input FREQ Resolution | Digital setting:0.01Hz Analog setting:max frequency×0.025% | |||
| Start Torque | 0.5Hz/150% | |||
| Speed Range | 1:100 | |||
| Steady Speed Accuracy | ±0.5% | |||
| Overload Capacity | 150% rating current 60s;180% rating current 3s. | |||
| Torque Boost | Automatically;Manually 0.1%~30.0% | |||
| V/F Curve | 3 Modes:Linear;Multi-point;N-th power V/F curve(1.2 powers,1.4 powers,1.6 powers,1.8 powers,2 powers) | |||
| V/F Separation | 2 Modes:Total separation,Semi separation | |||
| ACC/DCC Curve | Linear or S curve ACC/DCC PTN. 4 time modes of ACC/DCC (Timer range 0.0~6500.0s) | |||
| DC Brake | DC braking frequency:0.00Hz~Max FREQ Braking time:0.0s~36.0s Braking current:0.0%~100.0% | |||
| JOG Control | JOG FREQ:0.00Hz~50.00Hz. JOG ACC/DCC time range 0.0s~6500.0s. | |||
| PLC,Multi-section speed | Max 16- section speed operation available with built-in PLC or terminal control | |||
| Built-in PID | Process close-loop control system available | |||
| AVR Function | Automatically regulate the voltage to constant output though the changing in the grid voltage. | |||
| Overcurrent / overvoltage stalling | Automatically limit the current and voltage during running to avoid frequent overcurrent /overvoltage trip. | |||
| Current limiting function | Reduce overcurrent malfunction, ensure motor's operation | |||
| TORQ Limitation | Automatically limit the torque during running to avoid frequent overcurrent trip. | |||
Specifications of cooling blower and brake for the motor
| Motor | Frame | 80 | 90 | 100 | 112 | 132 | 160 | 180 | 200 | 225 | 250 | 280 | 315 | 355 |
| Cooling Fan | (W) Power | 30 | 42 | 52 | 55 | 55 | 80 | 80 | 150 | 200 | 230 | 320 | 700 | 700 |
| (A) Current | 0.09 | 0.16 | 0.18 | 0.18 | 0.19 | 0.26 | 0.30 | 0.6 | 0.6 | 0.6 | 1.1 | 1.8 | 1.9 | |
| Voltage | Standard 380V, but blower of other voltage can be customized depending on user's requirement. | |||||||||||||
| Brake | (N·m) Braking Torque | 7.5 | 15 | 30 | 40 | 80 | 150 | 200 | 300 | 450 | 600 | 850 | 200 | - |
| (W) Excitation Power | 50 | 60 | 80 | 110 | 130 | 150 | 150 | 200 | 200 | 210 | 340 | 400 | - | |
| Excitation Voltage | DC99,DC170 | - | ||||||||||||
| Encoder | Incremental Encoder | |||||||||||||
Mounting Type:
B3,B5,B35

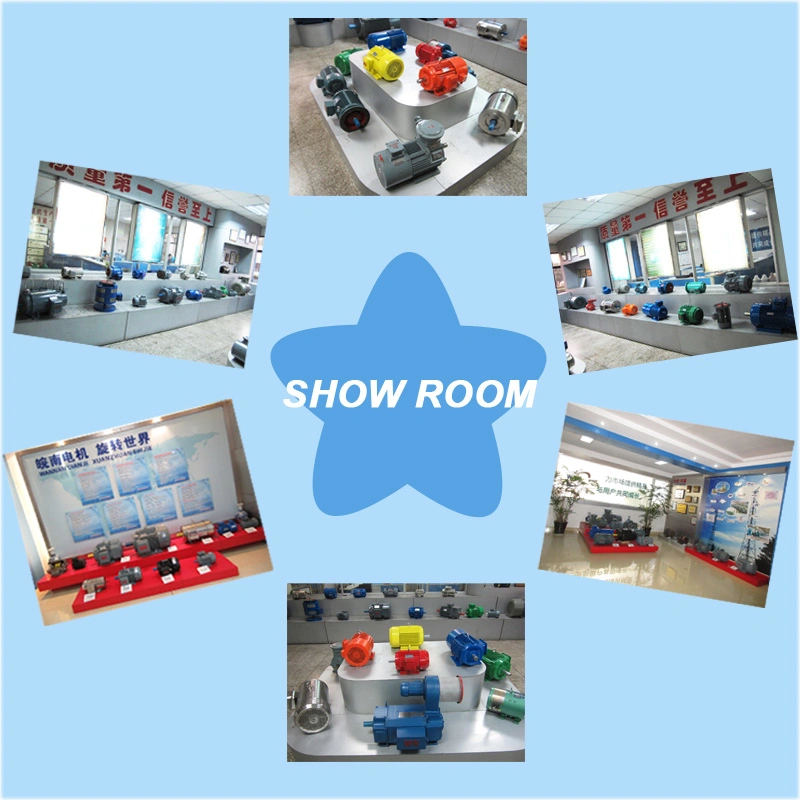

Show Room
Premium Service
Quality Control

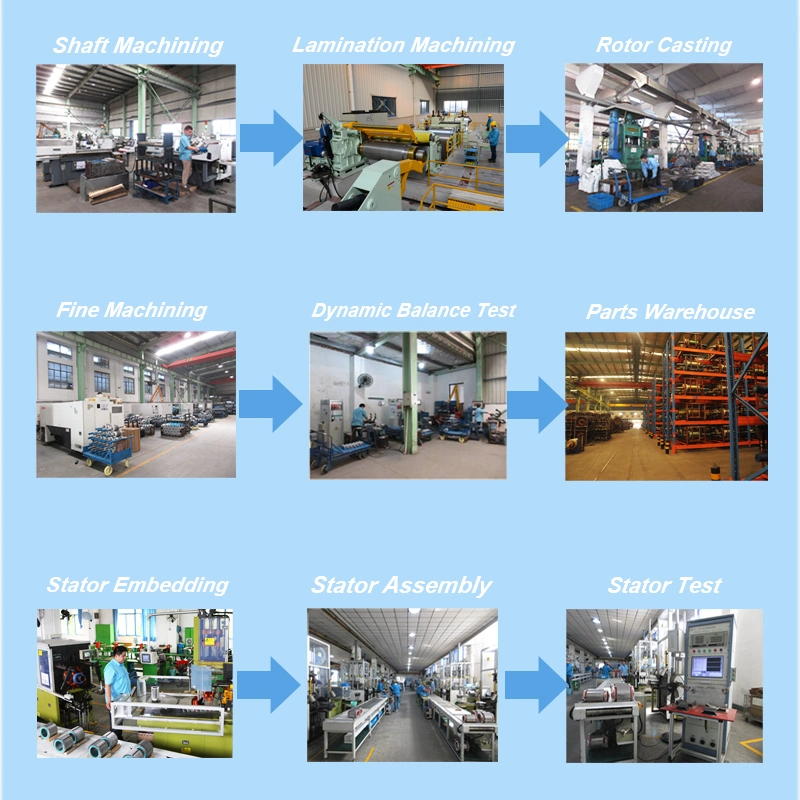

Wannan Motor Production Workshop and Flow Chart
